fans / motors





Post Image

Dynamic Air Technology uses a wide variety of fans from several manufacturers to ensure the air handling unit opperates at its full potential.



A few of DAT's most commonly used fans are

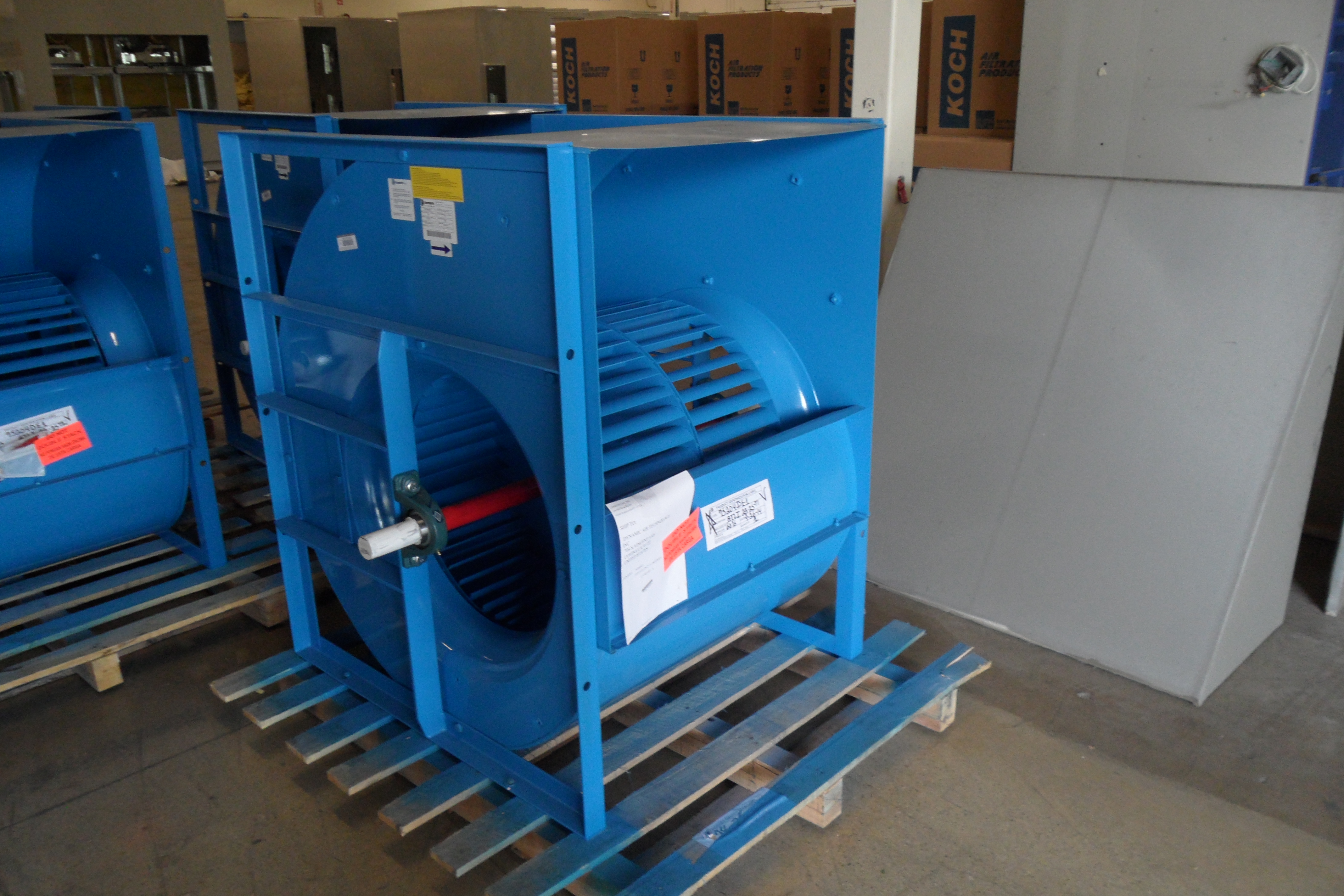

     - DWDI (Double Width Double Inlet)

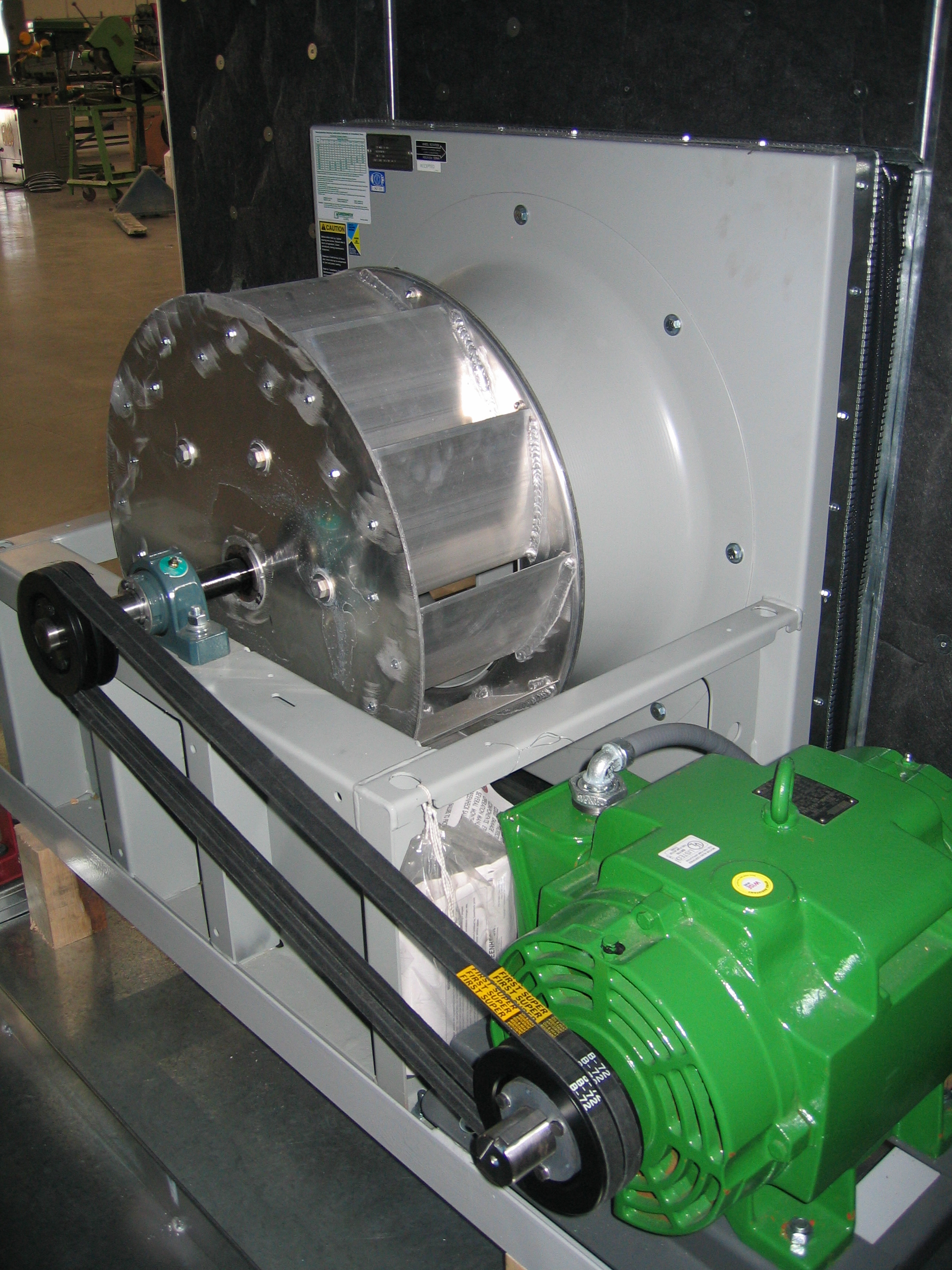

     - Belt driven plenum fans.

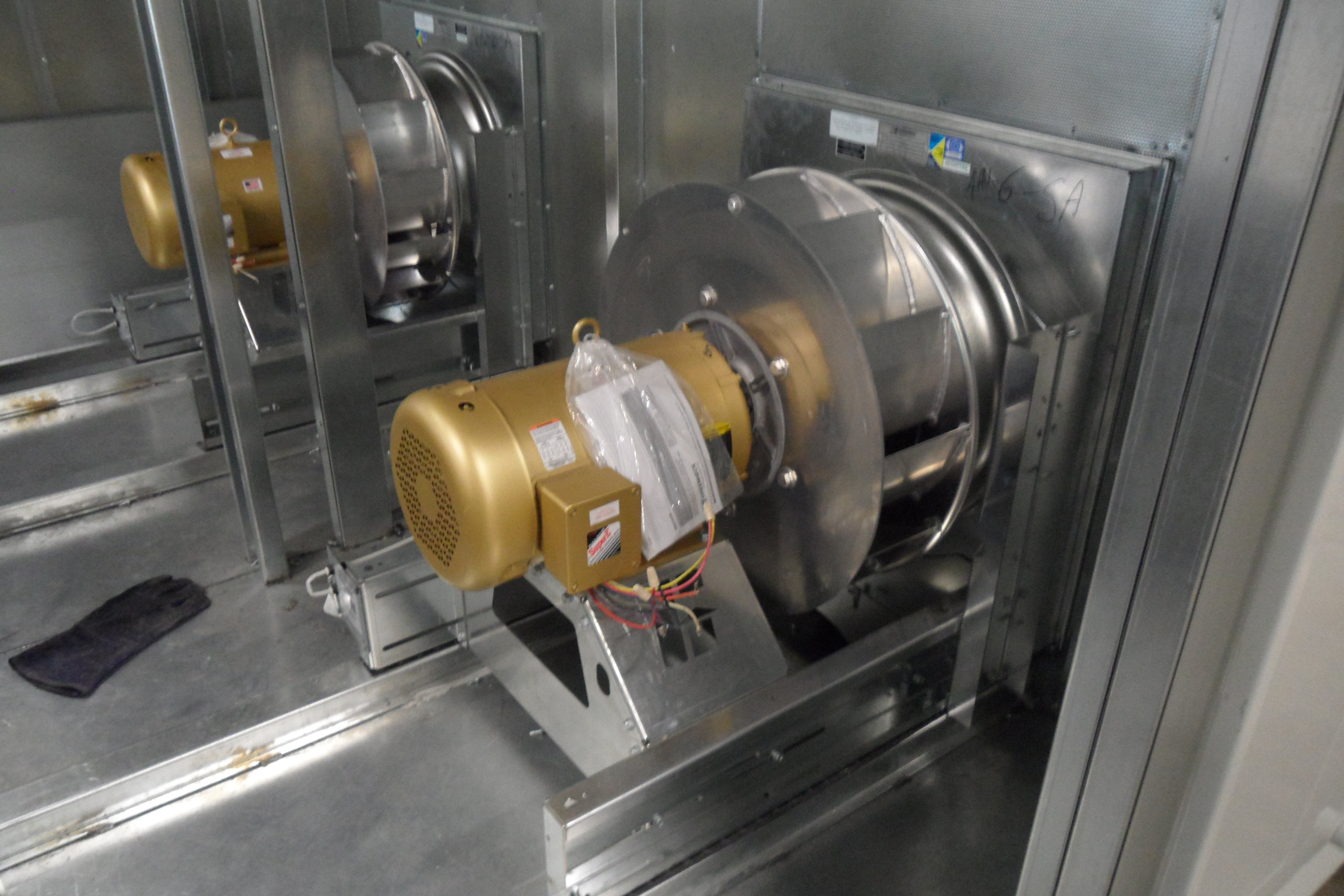

     - Direct driven plenum fans.

     - Plug fans.



Post Image

Plenum fans are capable of having monitoring systems installed to monitor CFM, RPM, static pressure, and other measurements not listed.



All fans can be coated and/or have the wheel composed a different material to satisfy customer needs. Stainless steel wheels and even painted wheels are possible.



In the case of multiple fans, a backdraft damper or blank off plate can be provided to ensure no reverse airflow.



There are also a large variety of motors that are used, but most common are the following.

     - ODP

     - TEFC

Post Image

     - ECM

     - Explosion Proof



Dynamic Air Technology has tested many EC Motors from several manufacturers and only uses those which showed the best results in both efficiency and sound.







Cooling





Post Image

Dynamic Air Technology selects all cooling components to meet the customers needs and wants. All cooling components are sized to perform at the best efficiency. Most common cooling components are

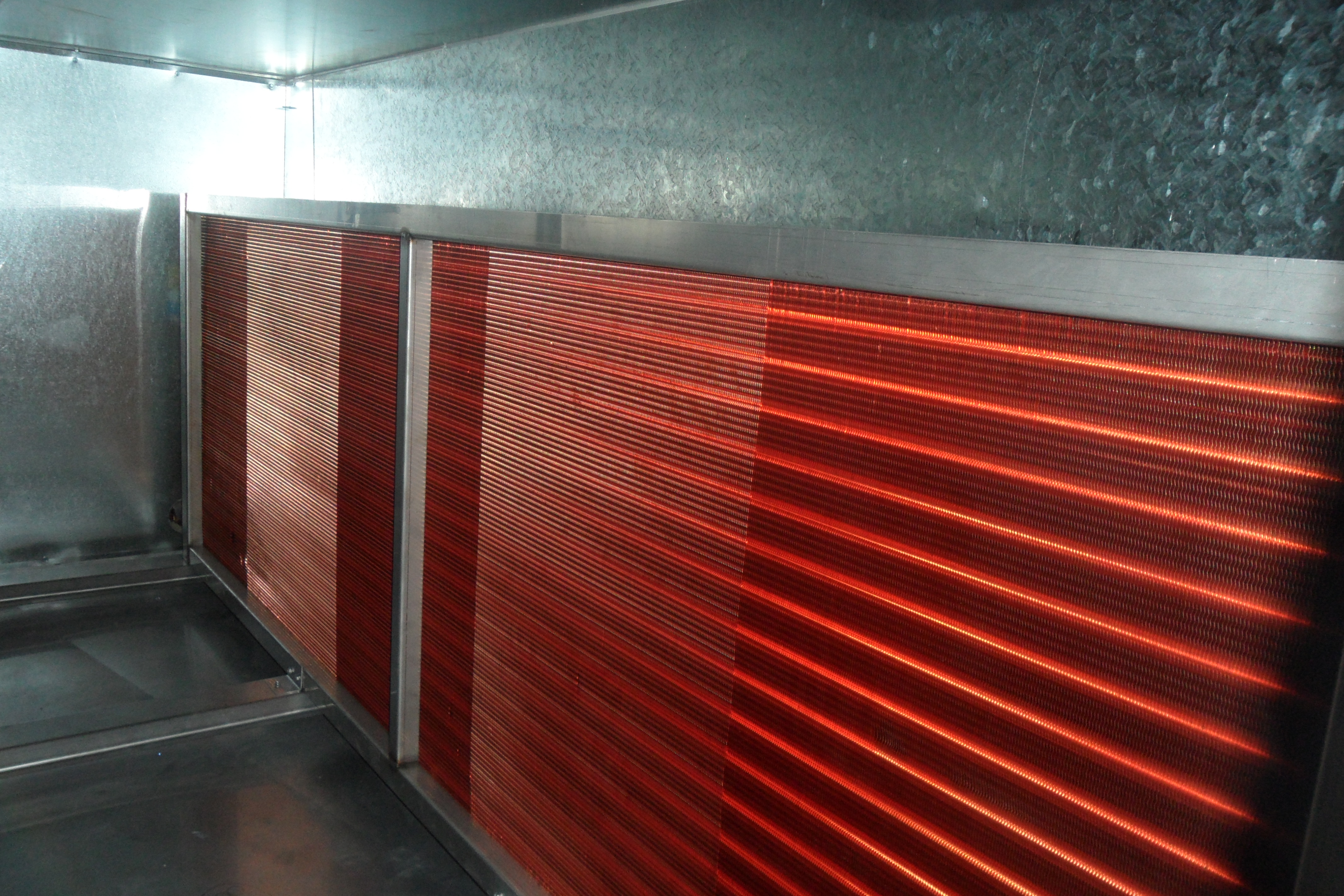

     - Chilled water cooling coils

     - Direct expansion cooling coils

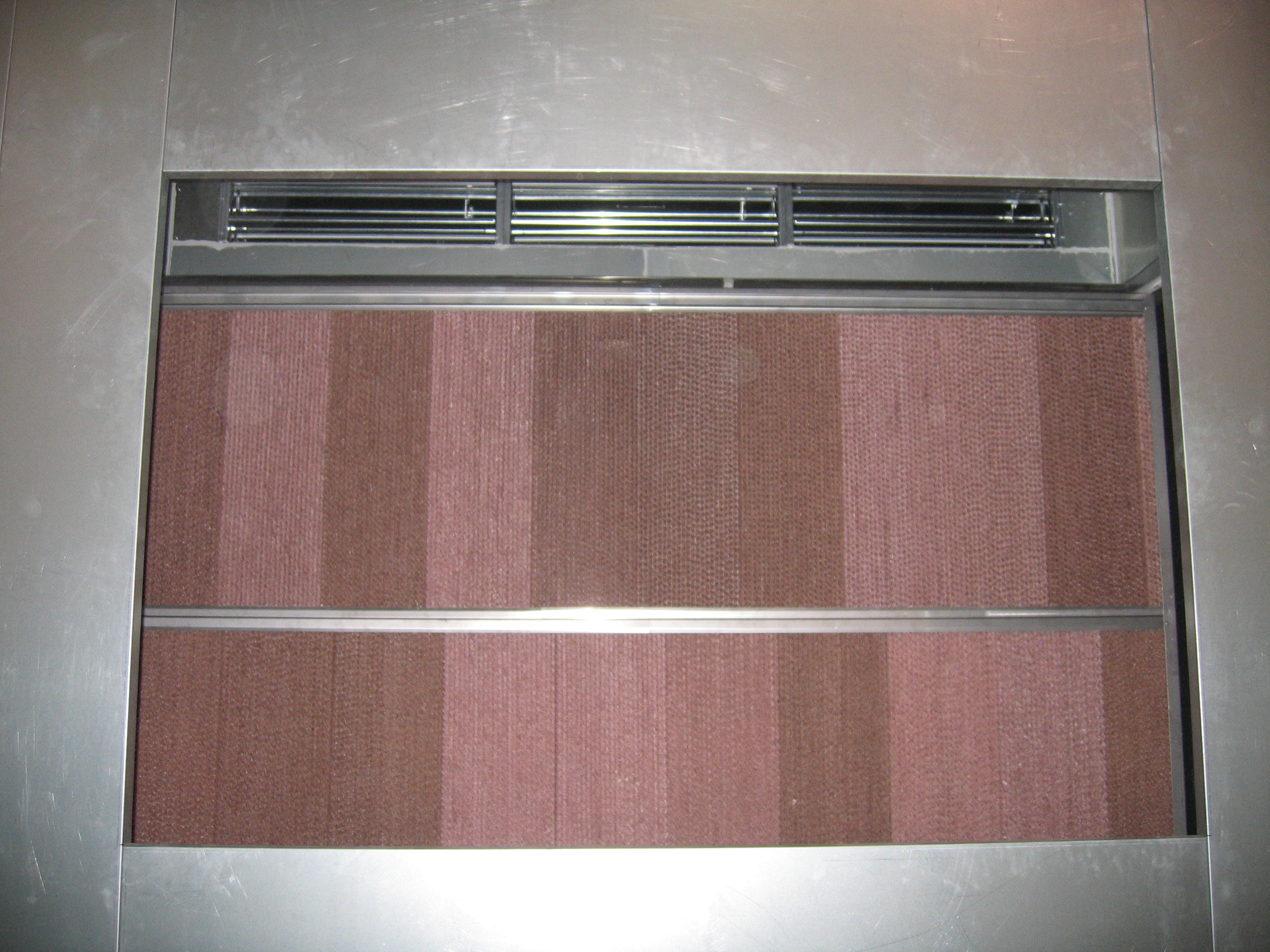

     - Direct evaporative cooling

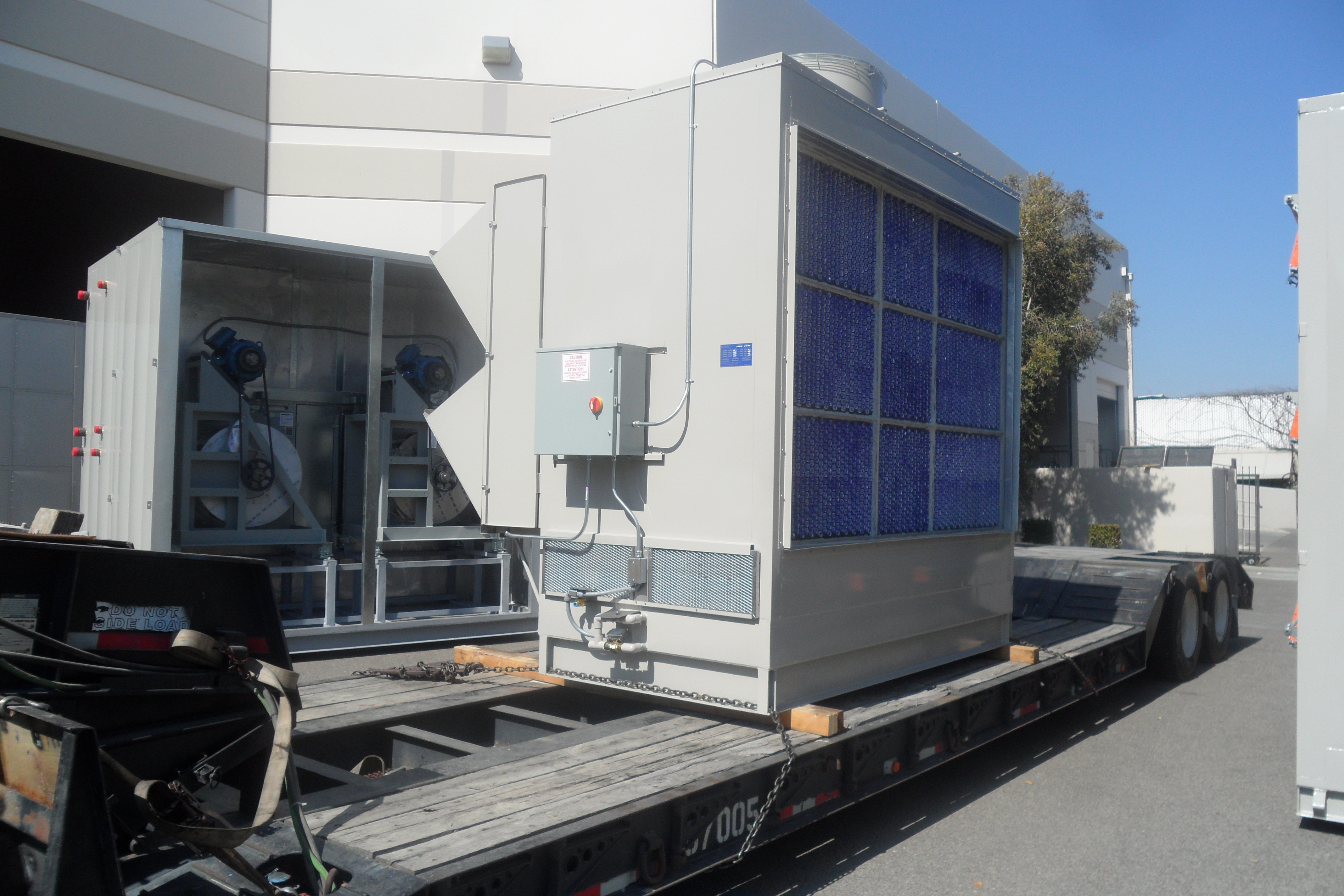

     - Indirect evaporative cooling



Post Image Post Image

















.





HEATING





Post Image

DAT is known to work with many different types of heating components.  Depending on where the unit is going as well as what the application of the unit is, a heater type can be chosen to meet the customers needs.The following are most commonly used components.



     - Hot water coil

     - Steam coil

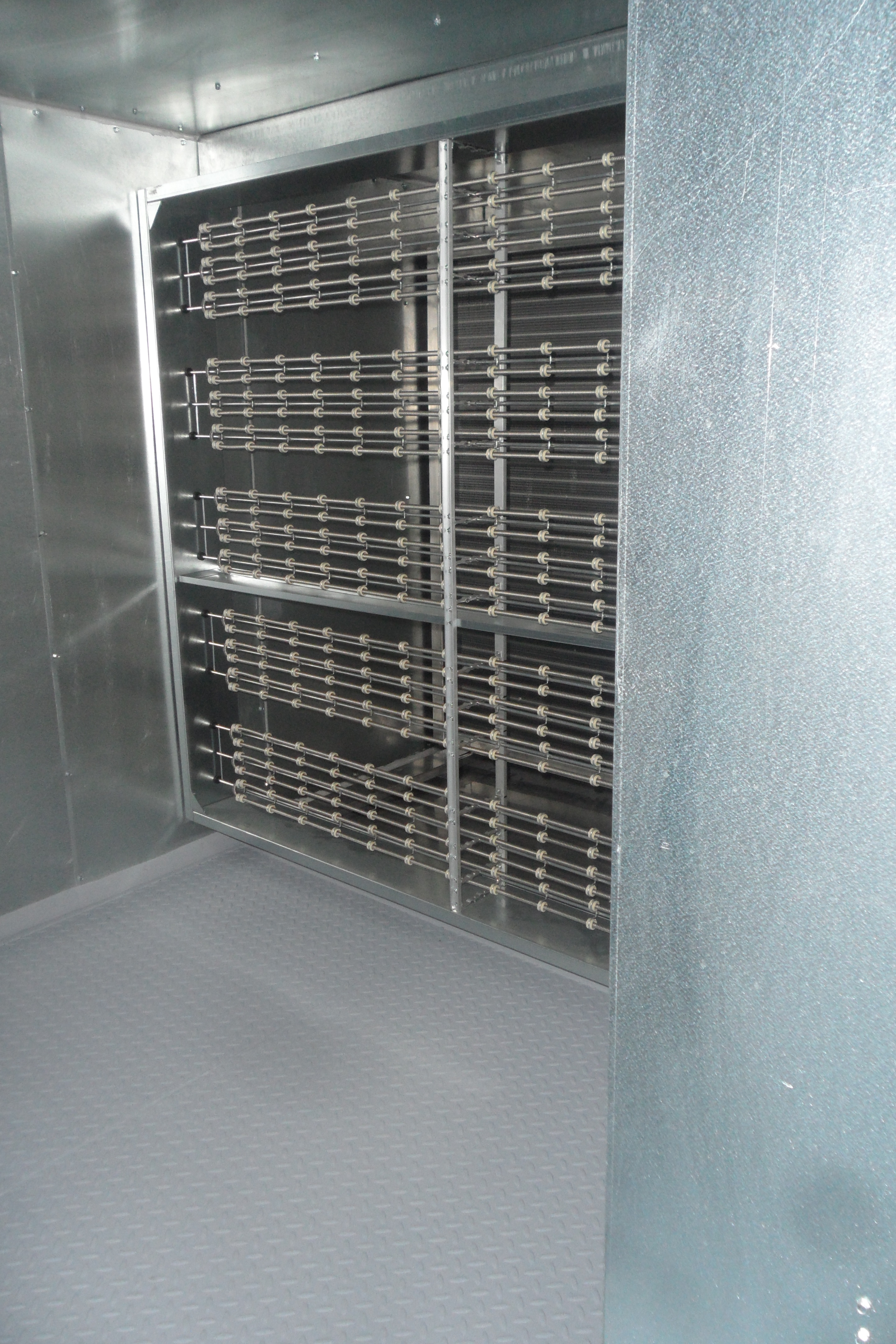

     - Electric heaters

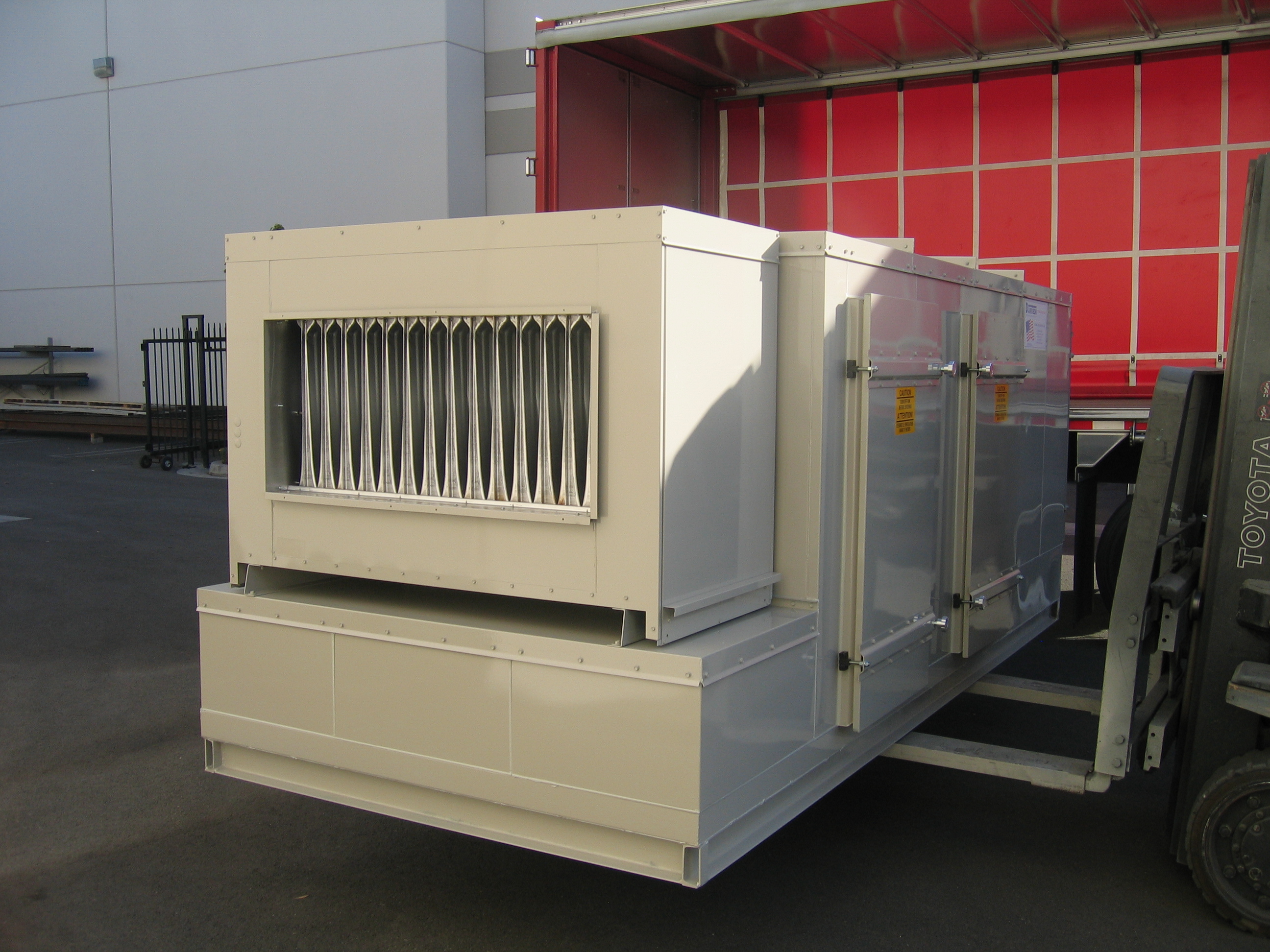

     - Direct fired gas heaters

     - Indirect fired gas heaters

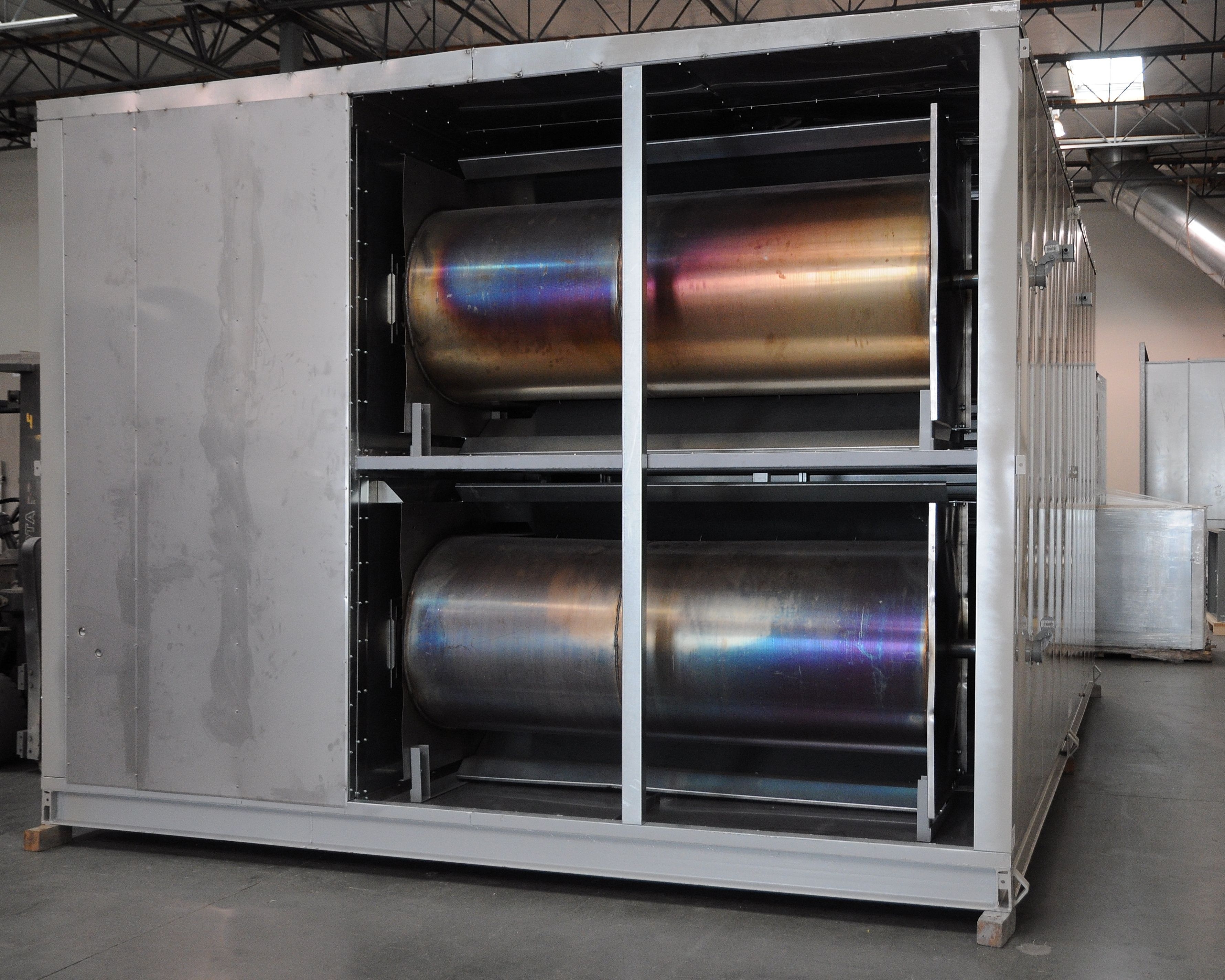

     -Drum and tube heaters











Post Image Post Image

















.







Filters





Post Image

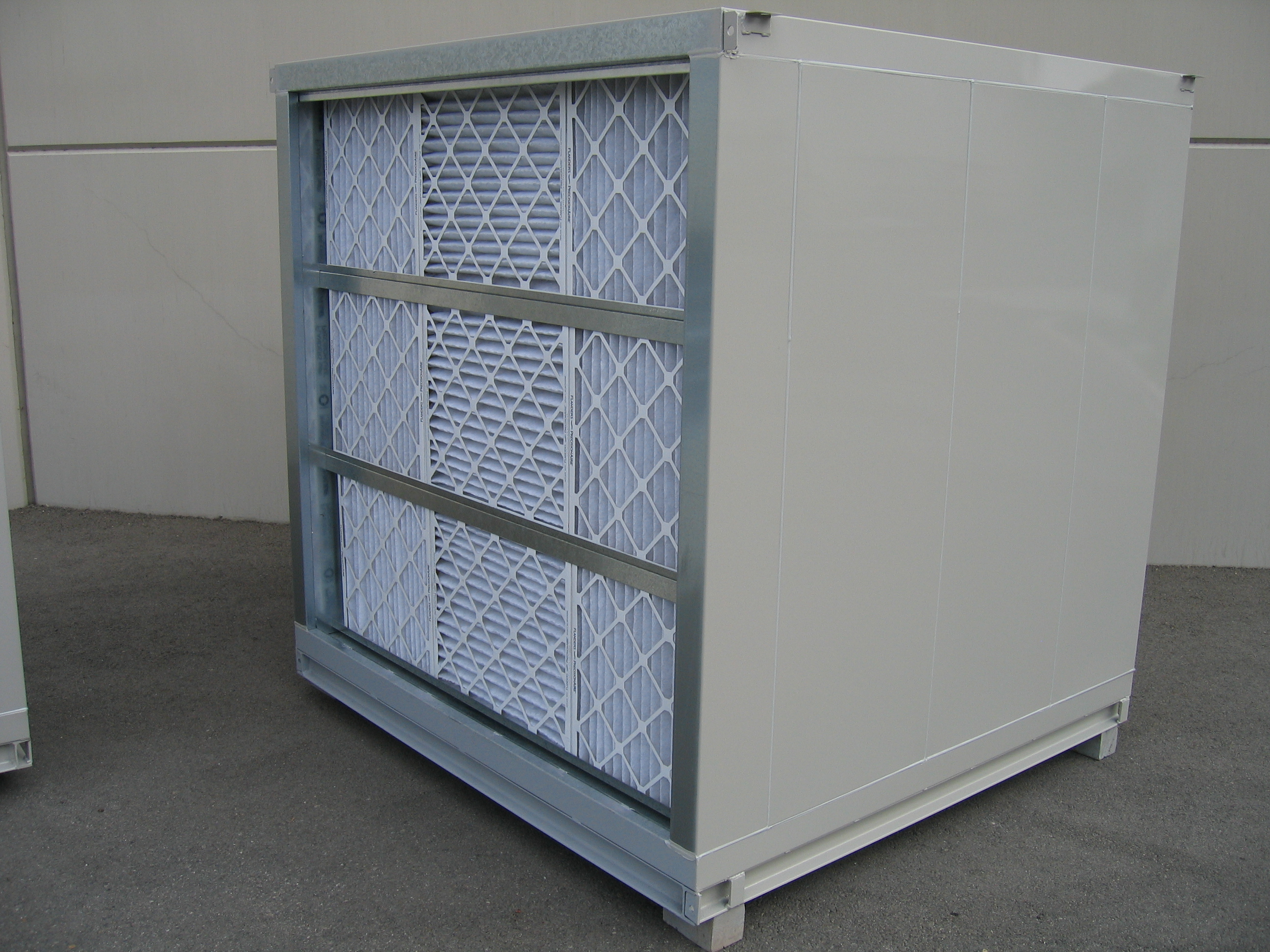

A filter can be choosen depending on what the customer may want filtered and/or what efficiency the customer may want. Filters efficiency range anywhere from 30% to 99.99%. The following are commonly used filters in air handling equipment.



     - 2" Pleated filters

     - 4" Mini-pleat filters

     - 12" Rigid filters

     - HEPA filters

Post Image

     - Bag filters

     - Aluminum washable filters

     - Carbon filters

     - Chemical filters





.
